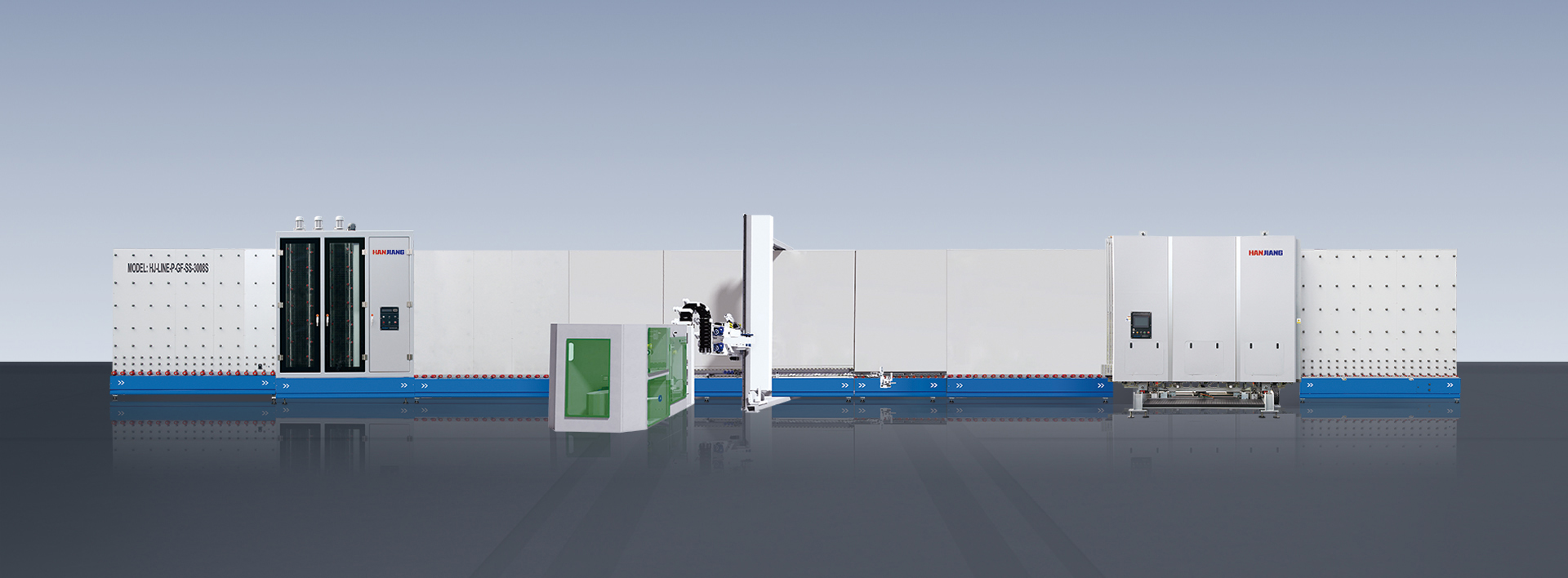

Super-Spacer IG Line Model:HJ-LINE-IP-GF-SS
Super-Spacer IG Line Model:HJ-LINE-IP-GF-SS
Product Introduction

Feature

  • PLC control system with touch screen interface
  • Multi-axis servo linkages, intelligent, fast and accurate
  • Adjustable V-cutting blade for shape glass
  • Special blade for Georgian bar processing
  • Automatic inspecting glass dimension and thickness
  • Automatic collection system for cutting chips
  • Tape bonding device is available
  • Suitable for triple insulating glass units for different spacer widths
  • Remote communication function
  • Adopt inverter drive, automatically adjust on material feeding speed according to compensation
  • Double applicator heads are available for two different spacers, allowing alternating application easily
  • Option:
  • Head's option: double applicator heads
  • Head's model: butyl coating device
  • Max glass size: can be customized

Technical Data

  • Max glass size: 2500×3000mm (2000×2500mm)
  • Min glass size: 300×450mm
  • Spacer thickness: 8~18mm (8-18mm*option)
  • Insulating glass thickness: 10-48mm
  • Washing glass thickness: 3-15mm
  • Washing speed: 0-10m/min
  • LOW-E brush: 6 units (3 units for Low-E)
  • Conveying speed: 45m/min
  • Power: 3P 380V/1P+N 220V 50Hz 38kW
  • Air source: Air quantity: 0.8m³/ min  Air pressure: 0.7MPa
  • Water conductivity: ≤30μs/cm
Customized Production Line-Max Glass Processing Size
  • 1500 Series

    1500 × 2000mm

  • 2000 Series

    2000 × 2500mm

  • 2500 Series

    2500 × 3600mm / 2500 × 4000mm / 2500 × 5000mm / 2500 × 6000mm / 2500 × 7200mm / 2500 × 8000mm / 2500 × 9000mm / 2500 × 12000mm

  • 3000 Series

    3000 × 3600mm / 3000 × 4000mm / 3000 × 5000mm / 3000 × 6000mm / 3000 × 7200mm / 3000 × 8000mm / 3000 × 9000mm / 3000 × 12000mm

  • 3300Series

    3300 × 3600mm / 3300 × 4000mm / 3300 × 5000mm / 3300 × 6000mm / 3300 × 7200mm / 3300 × 8000mm / 3300 × 9000mm / 3300 × 12000mm

  • Glass Types

    HANJIANG,GLASS,IGLINE,IG,DGU,SUPERSPACER,WARMEDGE,INSULATING,INSULATINGGLASS,SEALINGROBOT,AUTOSEALING, ALUMINUMSPACER,DESICCANT,BUTYLEXTRUDER, BUTYL, FULLLINE,WINDOW, CURTAINWALL,DOUBLEGLAZING, SEALANT

     Double glazing
     Double glazing with gas filling
     Triple glazing
     Triple glazing with single layer gas filled
     One side step
     Two side step
     Three side step
     Four side step
    SHAPE GALLERY
    Application Area
    Architectures

    Window & Door, Curtain wall

    01
    Transportation tools

    High-speed rail glass, side window

    02
    Home appliance

    Refrigerator glass

    03
    Solar glass

    Solar glass

    04
